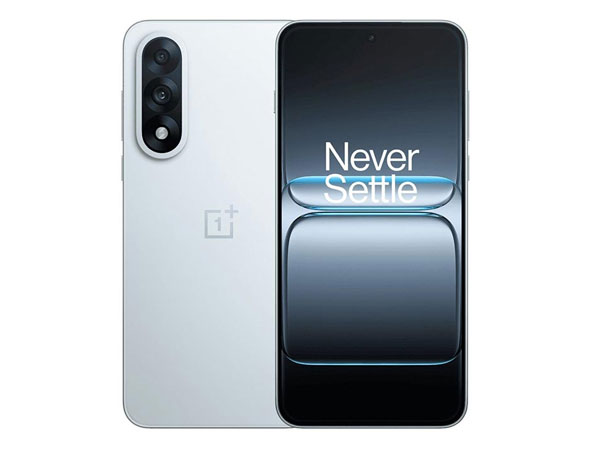

The OnePlus Ace 5 Ultra is powered by a Mediatek Dimensity 9400+ (3 nm) CPU processor with 16GB RAM, 512GB ROM. The device also has a 6.83-inch AMOLED (1272 x 2800 pixels, 450 ppi) display. It has a Dual: 50 MP, f/1.8, 24mm (wide), 1/1.56\\\", 1.0�m, PDAF, OIS + \\r\\n8MP rear camera and supports Wifi, Bluetooth, NFC, GPS, 4G LTE and 5G. It packs in a Si/C Li-Ion 6700 mAh battery at 8.1mm device thickness and weight 206g, running on Android 15, ColorOS 15.
OnePlus Ace 5 Ultra Specification |
| Release |
|---|
| Release Status | Available. Released 2025, May 27 |
|---|
| Performance |
|---|
| Processor | Octa-core (1x3.73 GHz Cortex-X925 & 3x3.3 GHz Cortex-X4 & 4x2.4 GHz Cortex-A720) |
|---|
| Chipset | Mediatek Dimensity 9400+ (3 nm) |
|---|
| GPU | Immortalis-G925 MC12 |
|---|
| RAM & Storage | 16GB RAM, 512GB ROM |
|---|
| External Storage | No |
|---|
| OS | Android 15, ColorOS 15 |
|---|
| Battery | Si/C Li-Ion 6700 mAh battery
100W wired, PD, 100% in 39 min
\r\n7.5W reverse wired |
|---|
| Screen |
|---|
| Display size | 6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio)
1272 x 2800 pixels (~450 ppi density) |
|---|
| Display type | AMOLED, 1B colors, 144Hz, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1400 nits (peak) |
|---|
| Features | Crystal Shield Glass |
|---|
| Body |
|---|
| Dimension | 163.4 x 77 x 8.1 mm |
|---|
| Weight | 206 g (7.27 oz) |
|---|
| Body Type | IP65 dust tight and water resistant (low pressure water jets) |
|---|
| Colors | Flowy Emerald, Silky Black |
|---|
| Connectivity |
|---|
| SIM | Nano-SIM + Nano-SIM |
|---|
| Data Speed | HSPA, LTE, 5G |
|---|
| Wifi | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band |
|---|
| Bluetooth | 5.0, A2DP, LE, aptX HD, LHDC 5 |
|---|
| NFC | Yes, HCE, eSE, NFC-SIM |
|---|
| Infrared | Yes |
|---|
| USB | USB Type-C 2.0 |
|---|
| Sensors |
|---|
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
|---|
| GPS | GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a+B2b), GALILEO (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5) |
|---|
| Radio | No |
|---|
| Camera & Video |
|---|
| Rear Camera | Dual: 50 MP, f/1.8, 24mm (wide), 1/1.56\", 1.0�m, PDAF, OIS + \r\n8 MP, f/2.2, 16mm, 112? (ultrawide), 1/4.0\", 1.12�m |
|---|
| Front Camera | 16 MP, f/2.4, 23mm (wide), 1/3\", 1.0�m |
|---|
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS
Selfie: 1080p@30fps, gyro-EIS |
|---|
| Features | Color spectrum sensor, Dual-LED flash, HDR, panorama
Selfie: HDR, panorama |
|---|
| Audio |
|---|
| Loud Speaker | Yes, with stereo speakers |
|---|
| Sound Jack | No |
|---|
| Radio | No |
|---|
